2 Ton 3 Ton 5 Ton 10 Ton 16 Ton 20 Ton Export Electric Hoist Single Girder Semi Gantry Crane

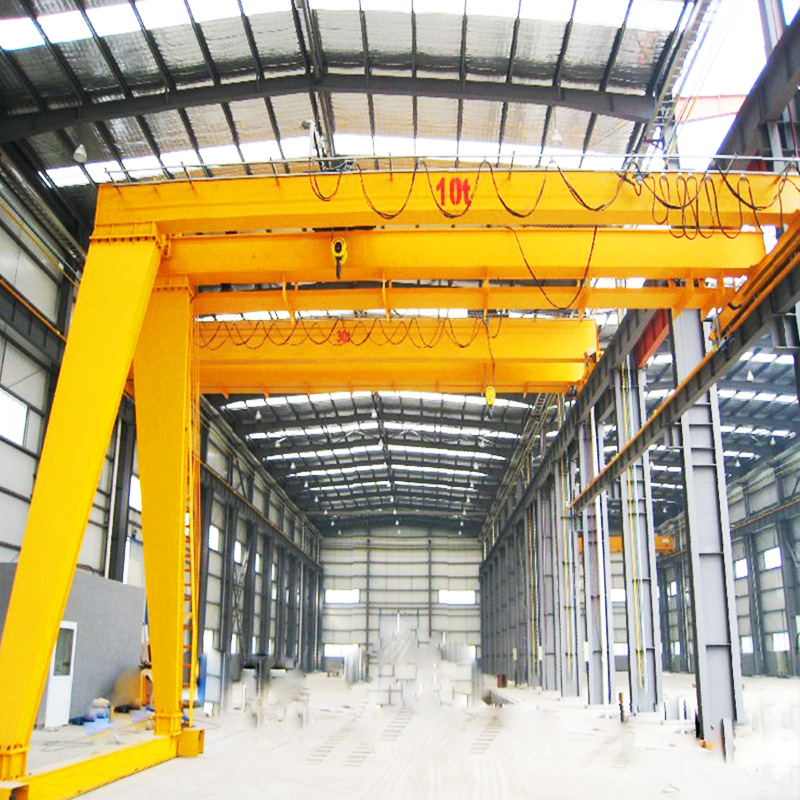

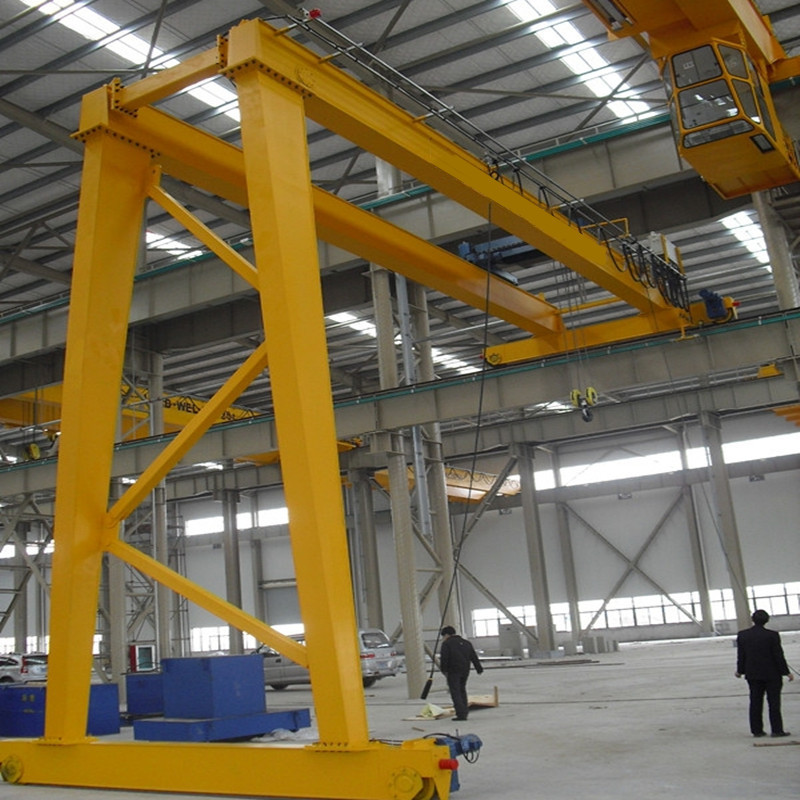

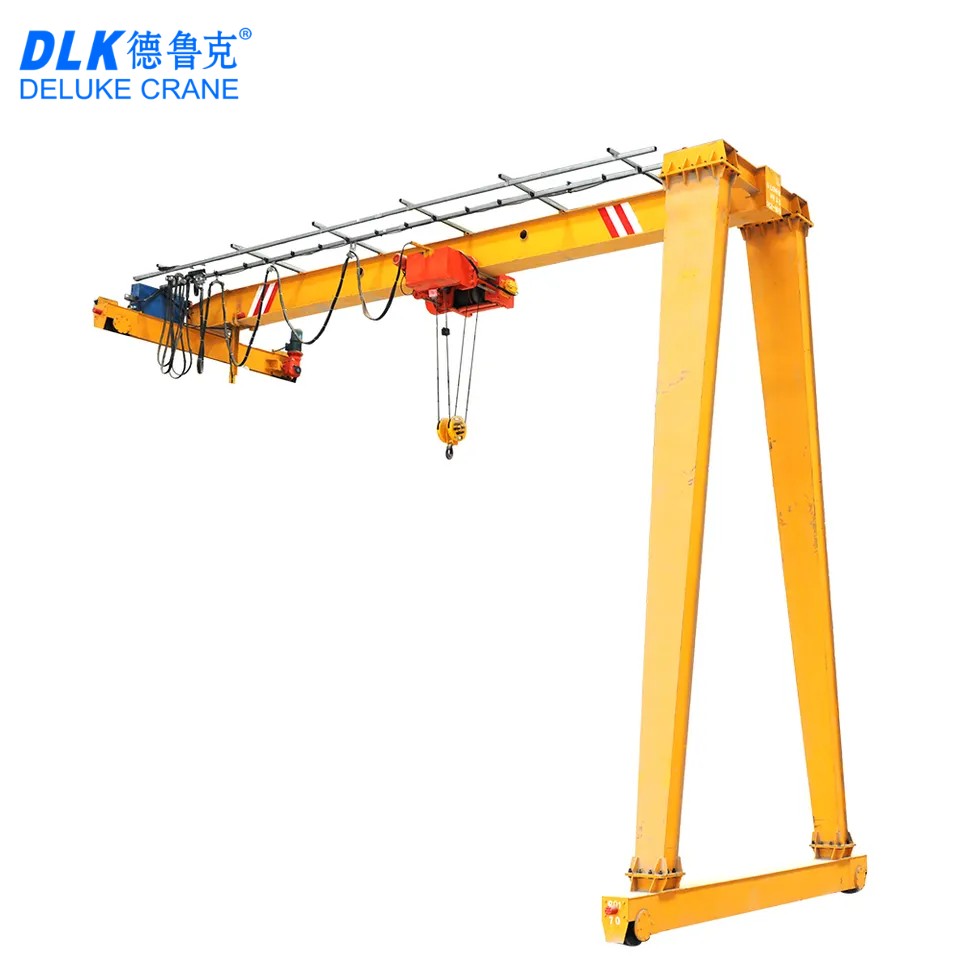

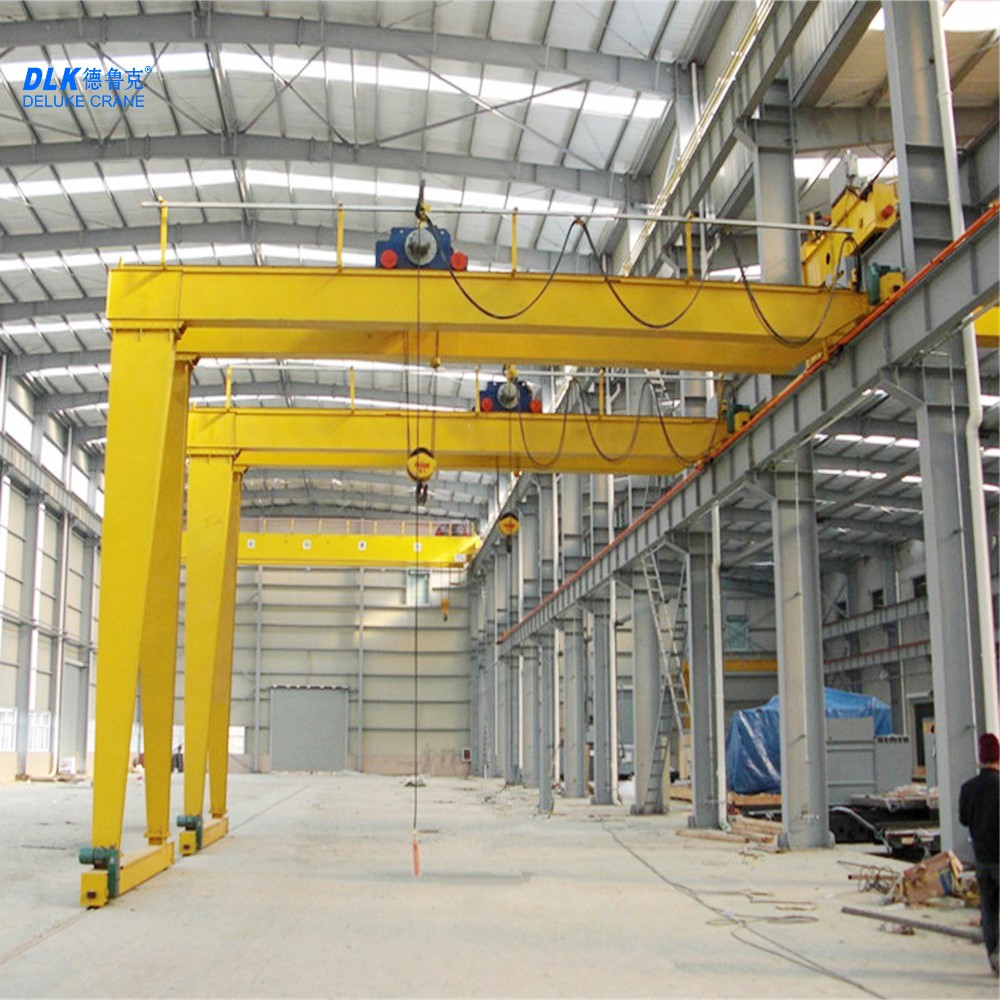

DLK Semi gantry cranes are a special type of crane that combines the design of an overhead bridge crane with that of a motorized gantry crane. A single side of a Semi Gantry bridge is supported by an elevated runway as with an overhead. it is used in conjunction with CD1, MD1 and other types of electric hoists. It is a small and medium-sized crane with track operation. This product is a general purpose crane, which is mostly used for material handling in mechanical processing workshops.
| Main Parameters List | ||||||
| Crane Traveling Mechanism | Traveling Speed(m/min) | 20 | 30 | 45 | 60 | |
| Ratio | 58.95 | 39.42 | 26.51 | 19.44 | ||
| Motor | Type | Cone Squirrel-cage | Cone Squirrel-cage | |||
| Power(kw) | 0.8*2, 1.5*2, 2.2*2 | 1.5*2, 2.1*2 | ||||
| Rotary Speed(r/min) | 1380 | 1350 | ||||
| Hoist Lifting Mechanism and Traveling Mechanism | Trolly | |||||
| Lifting Speed(m/min) | 8/0.8, 7/0.7, 3.5/0.35 | 8, 7, 3.5 | ||||
| Span(m) | 7.5-28.5 or assigned | |||||
| Lifting Capacity(t) | 1-32 | |||||
| Lifting Height(m) | 6, 9, 12, 18, 24, 30 | |||||
| Traveling Speed(m/min) | 20, 30 | |||||
| Motor | Cone Squirrel-cage | |||||
| Work Duty | A4-A5 | |||||
| Power Supply | 220v 240v 380v 400v 440v 50Hz 3P | |||||
| Wheel Diameter | Φ270, Φ400 | |||||
| Trail Width | 37-70 | |||||
Advantage:
Application:

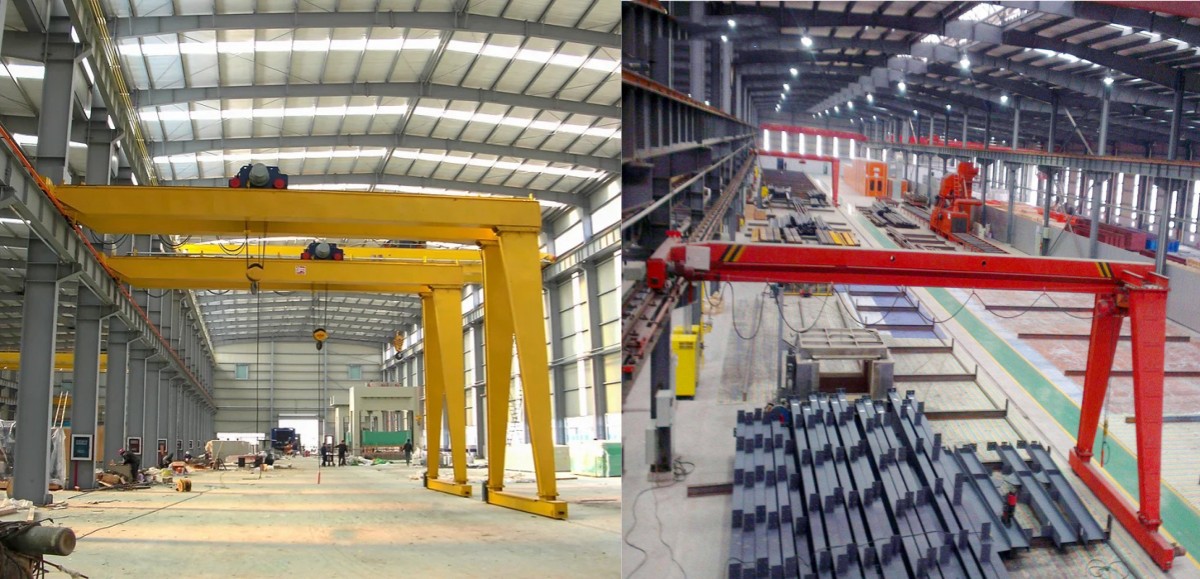

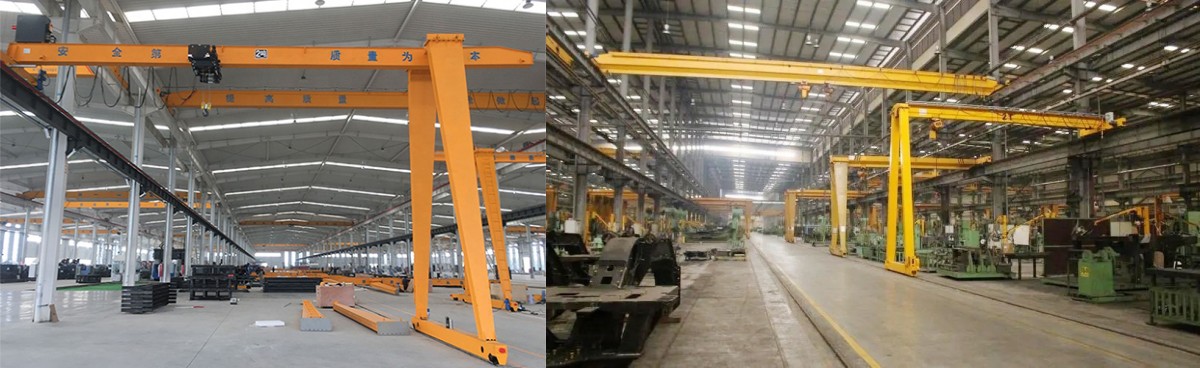

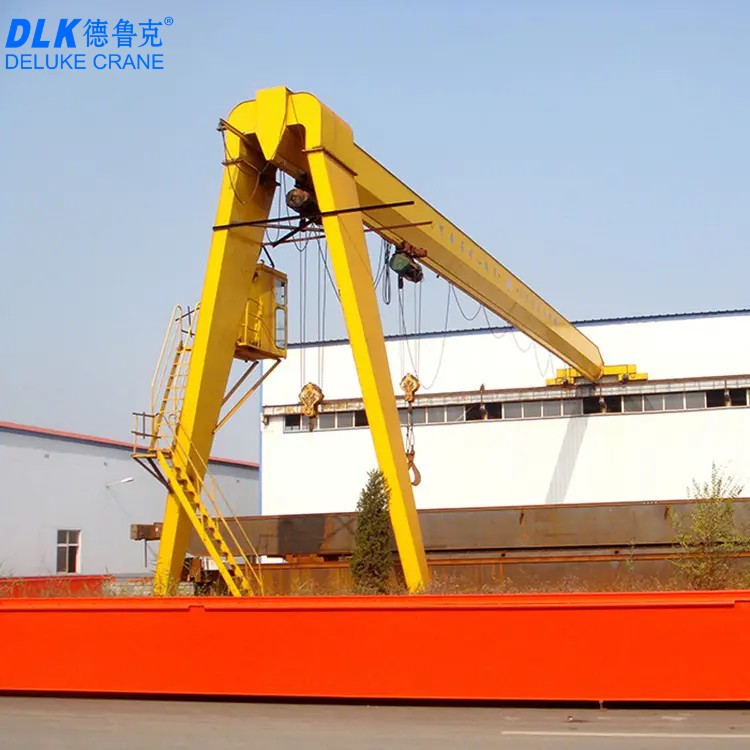

Semi gantry cranes are commonly used for material lifting and transporting on many occasions including indoor and outdoor workplaces, such as machinery and mechanical processing factory, warehouses, assembly and maintenance factory, garages and so on.
Why Choose Us
1.Established in 2009
2. Exported more than 65 countries
3. Agency of Germany ABUS
4.The only provincial-level crane machinery automation engineering technology research center in Shandong Province in China
5.7*24 hours service
6.Turnkey solutions from concept to the final product.
1.international German technology
2.Independent R&D Center
3.Energy saving and environmental protection
4.Lightweight structure, easy to operate
5.Low failure rate, easy maintenance
6.Deep strategic cooperation with European crane leading enterprise Abus
7.High cost-effectiveness
Company information
Shandong Deluke Crane Group Co., Ltd. was established in June 8th. 2009, located at the foot of Mount Tai, Yangliu Industrial Park, Xintai City, Shandong Province. It is an integrated enterprise integrating crane technology R&D, design, manufacture, installation, repair and maintenance. Mainly producing overhead cranes, gantry crane, Europe overhead cranes, KPK cranes, JIB cranes, intelligent crane robots, hoist, artificial intelligence products such as Crane monitoring system( "black boxes") .
With the feature of environmental protection, lightweight structure, intelligent control, low failure rate, convenient operation, and easy maintenance which popular selling to more than 200 countries such as Vietnam, the United States, Indonesia, Russia, Angola and Pakistan, etc.
Looking for agents all over the world,warmly welcome friends all over the world come to visit us for deep cooperation .
Package and shippment
FAQ
Q1.Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements.Please give us the information as clear as you can, so we can give our best design to suit for your demands.
Q2.How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind of operation way you need.
Q3.I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
Q4.Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...
Q5:In order to offer the most suitable design solution for you, It will be great helpful if you can offer us the following information to us:
1.Lifting capacity.
2.Span length.(rail center to rail center)
3.Lifting height.(hook center to ground)
4.Have you installed the rails?Do you need us to supply the rails?How long is it?
5.Power supply:Voltage.
6.Working condition:What kind of material to lift?Temperature?
7.It would be much better if it is possible for you to offer the drawing photo of your workshop.
