Hot Sale Outdoor Use L Type Single Girder Gantry Crane
Hot Sale Outdoor Use L Type Single Girder Gantry Crane1. Product DescriptionL type single girder gantry crane is matched with trolley, a kind of track traveling mid - light type crane. It is ideal fo
- Information
- Video
Hot Sale Outdoor Use L Type Single Girder Gantry Crane
1. Product Description

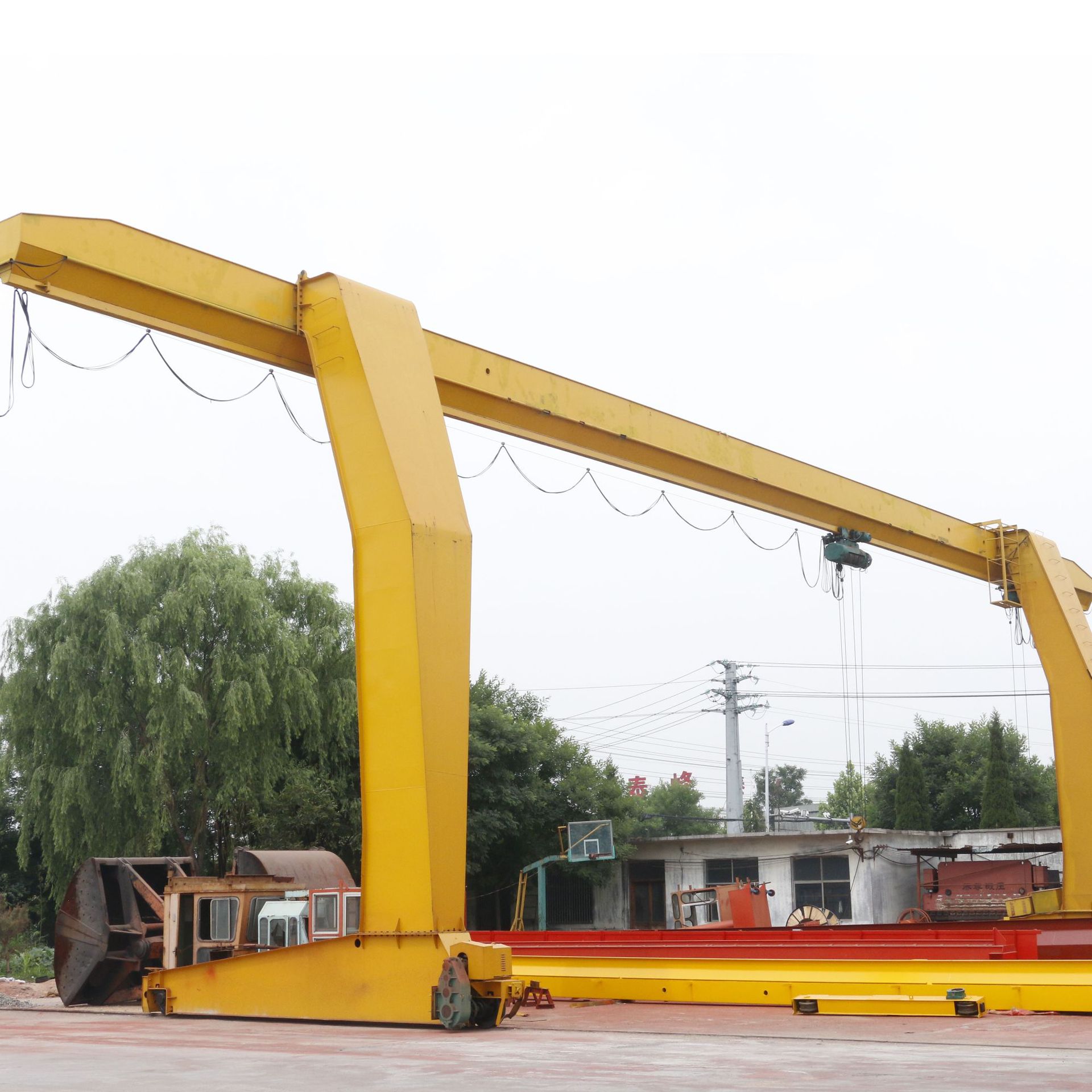

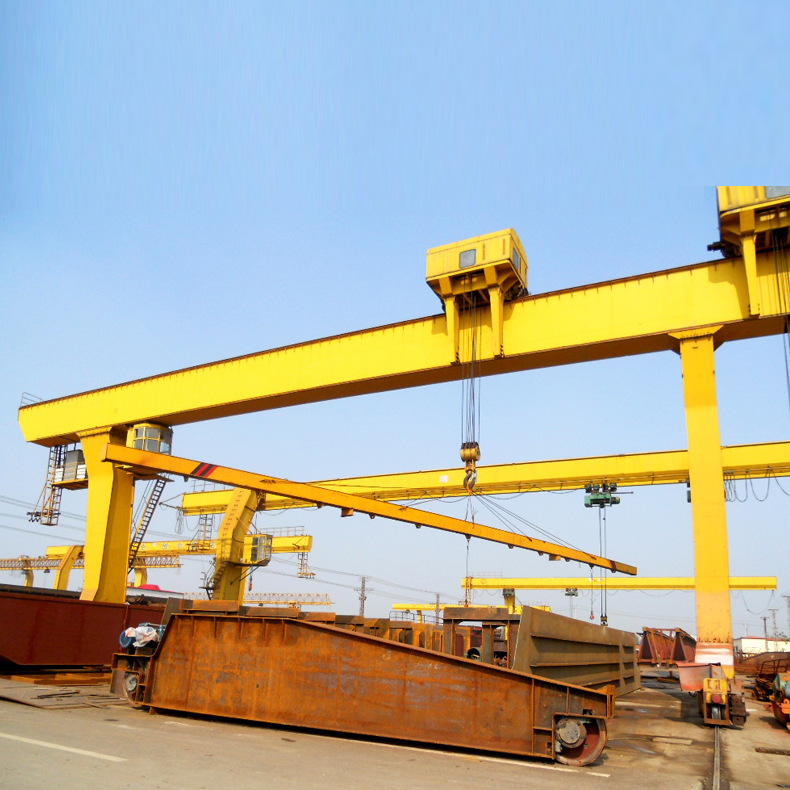

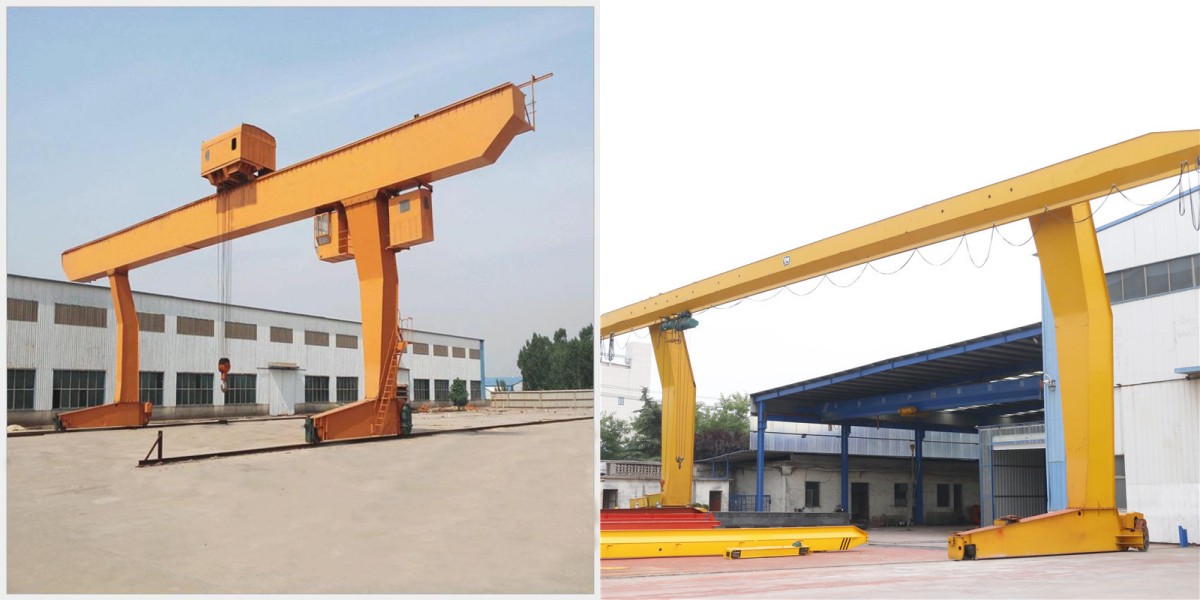

L type single girder gantry crane is matched with trolley, a kind of track traveling mid - light type crane. It is ideal for outdoor applications where lifting facilities are provided without the cost of a building or any supporting steelwork. They are also suited to indoor applications where existing building structures are not suitable to take overhead cranes, and where additional supporting steelwork would result in a loss of floor area. It can be constructed with a cantilever to allow handling outside the rail centers.
Classification:
According to the different lifting mechanisms, it is divided into two types of L-type gantry cranes: trolley type and hoist type:

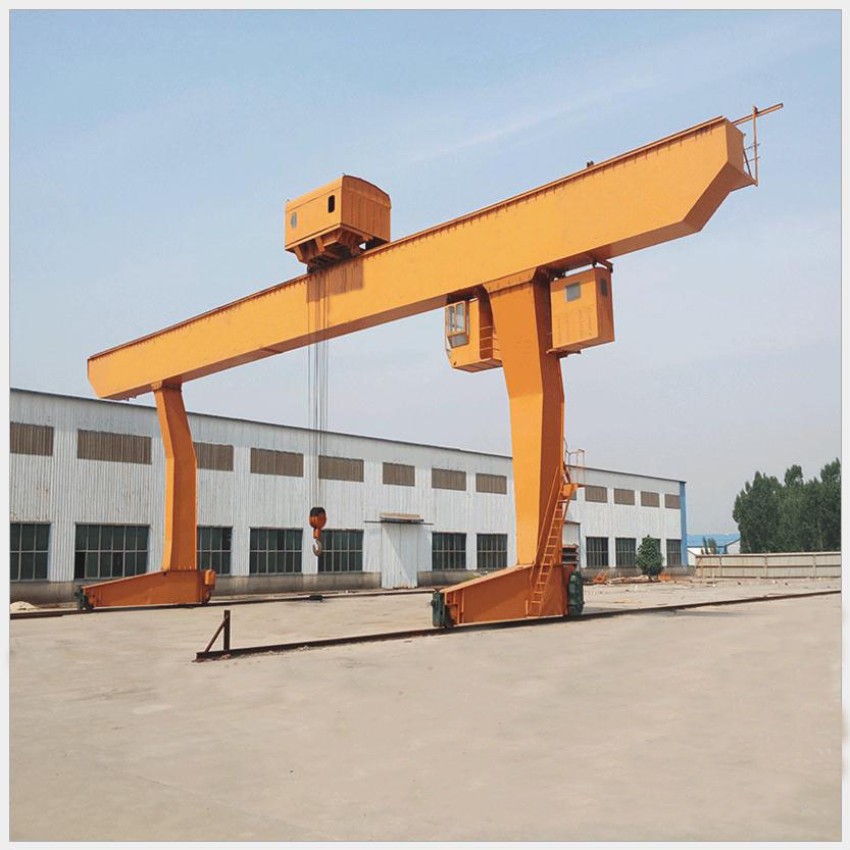

The trolley-type lifting mechanism is above the main beam, and there are two rails, one on the top of the main beam and the other on the edge of the bottom of the main beam. Make sure that the trolley can run stably on the main beam.

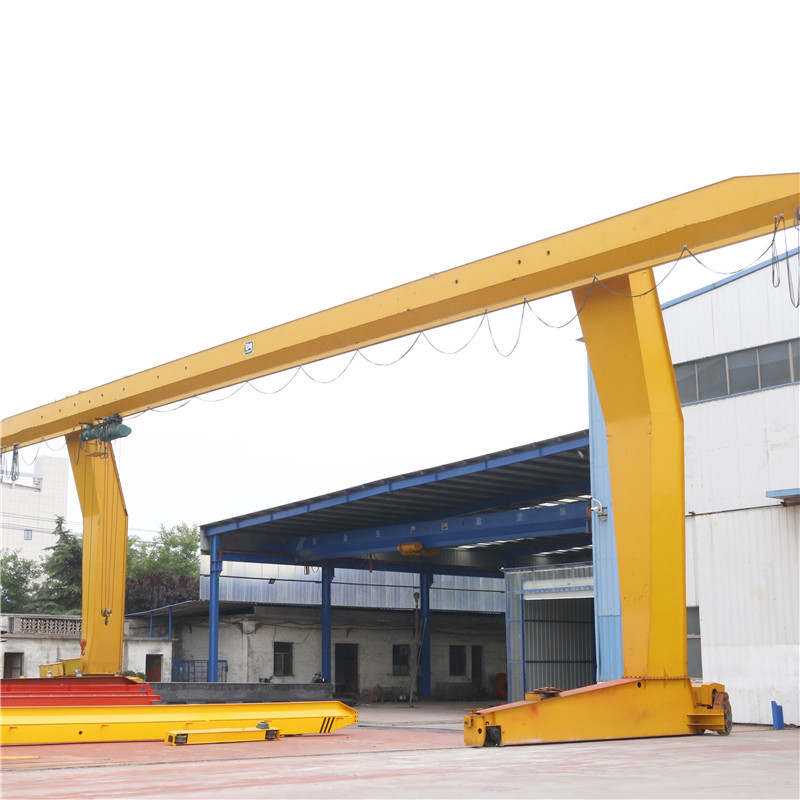

The hoist-type lifting mechanism is a monorail electric hoist, which is suspended from the lower part of the main beam.
2. Product Parameters
Product name | L type single girder gantry crane |
Model | MDG 5-32T |
Lifting weight | 5-32ton |
Span | 18-35m or custom |
Lifing height | 12m or custom |
Lifting Speed | 7.2-19.46m/min |
Trolley running speed | 36-45m/min |
Crane runing speed | 36-54m/min |
Work duty | A5 |
Working temperature | 36-54m/min |
Power supply | 220V 240V 380V 400V 440V 50Hz 3P or custom |
Pls contact us for more deails
3. Our clients
Why Choose DLK
1. Service our clients in this filed since 2009
2. Exported more than 65 countries
3. Agency of Germany ABUS
4.The only provincial-level Crane machinery automation engineering technology research center in Shandong Province in China
5.7*24 hours service
6.Turnkey solutions from concept to the final product.

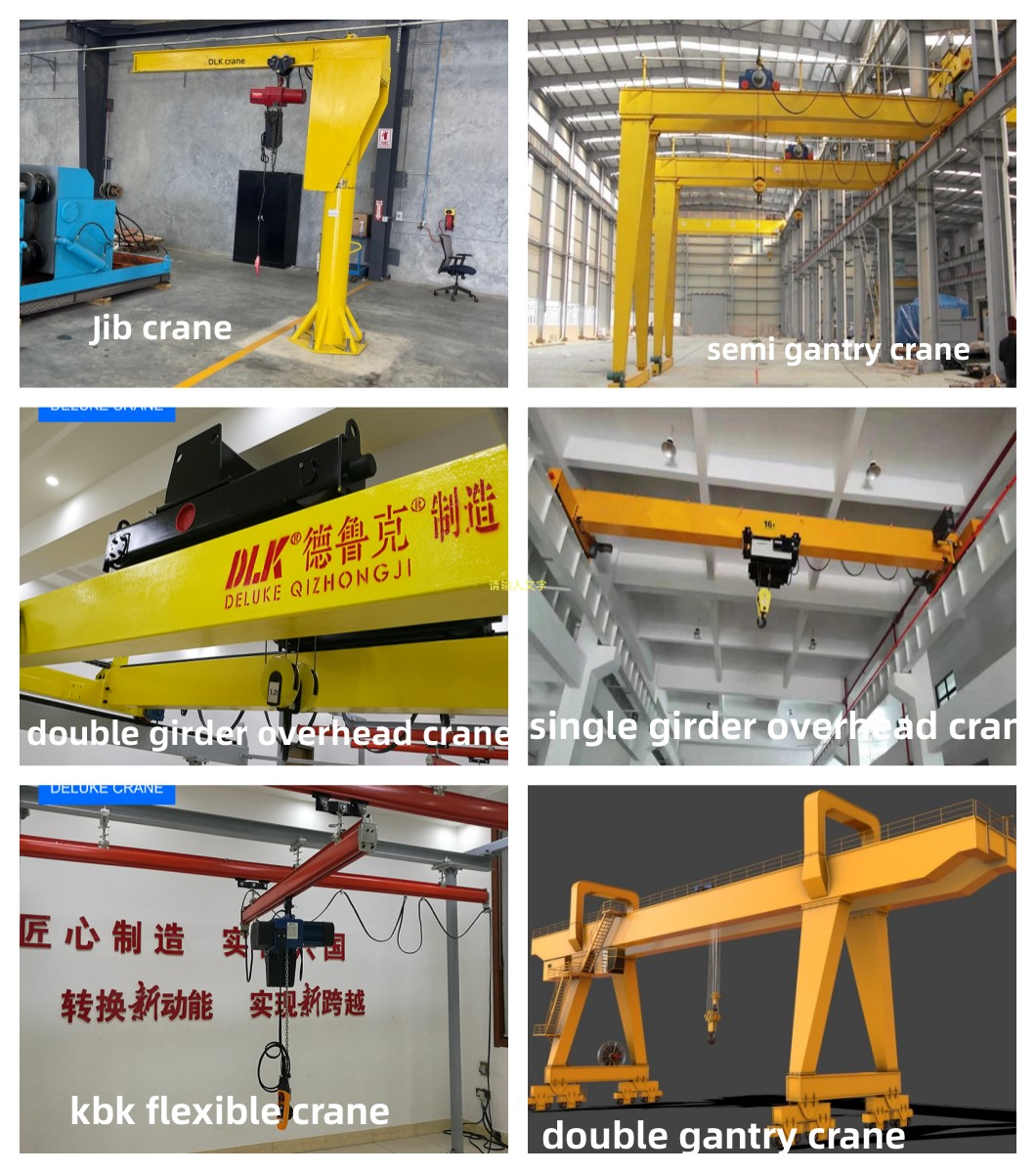

4. Related Products
5. Company information
Shandong Deluke Crane Group Co., Ltd. was established in June 8th. 2009, located at the foot of Mount Tai, Yangliu Industrial Park, Xintai City, Shandong Province. It is an integrated enterprise integrating crane technology R&D, design, manufacture, installation, repair and maintenance. Mainly producing overhead cranes, gantry crane, Europe overhead cranes, KPK cranes, JIB cranes, intelligent crane robots, hoist, artificial intelligence products such as Crane monitoring system( "black boxes") .
DLK production technology is sourced from leading German technology, collaborates with German Demag and Finland Kone for Crane technical exchange and cooperation, adopts advanced leading European standard lifting mechanism and operation drive system as the main configurations. Now Company signed Strategic cooperation agreement with German ABUS. With the feature of environmental protection, lightweight structure, intelligent control, low failure rate, convenient operation, and easy maintenance which popular selling to more than 20 countries such as Vietnam, the United States, Indonesia, Russia, Angola and Pakistan, etc.
Looking for agents all over the world,warmly welcome friends all over the world come to visit us for deep cooperation .

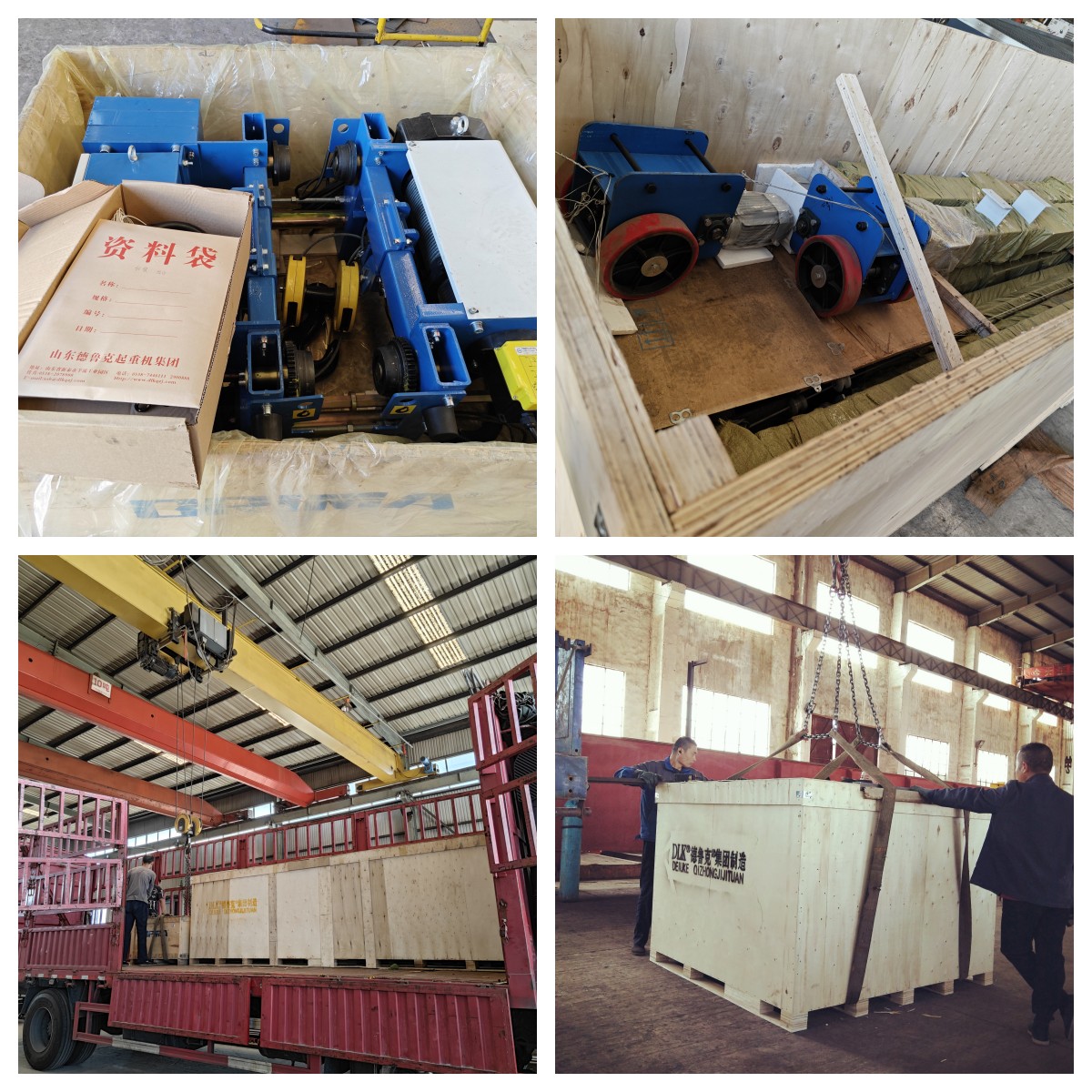

6. Package and shippment
7. FAQ
Q1. Can the cranes be customized?
Yes, every customer's working condition is different, all of our products can be customized depend on customers' requirements. Please give us the information as clear as you can, so we can give our best design to suit for your demands.
Q2. How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type. Please tell us what kind of operation way you need.
Q3. I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
Q4. Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...
Q5: In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:
1. Lifting capacity.
2. Span length. (rail center to rail center)
3. Lifting height. (hook center to ground)
4. Have you installed the rails? Do you need us to supply the rails? How long is it? 5. Power supply: Voltage.
5. Working condition: What kind of material to lift? Temperature?
6. It would be much better if it is possible for you to offer the drawing photo of your workshop.
