High Quality MH 3-20T Electric Single Girder Wire Rope Hoist Gantry Crane
1. Product Description

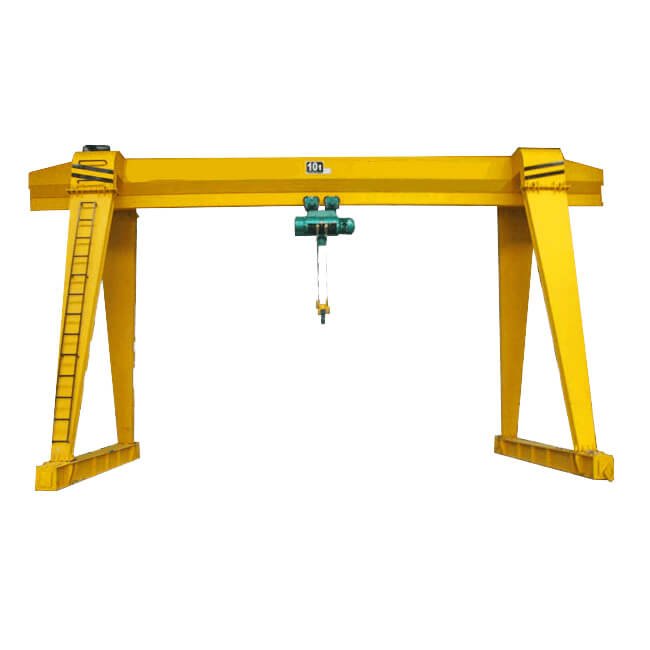

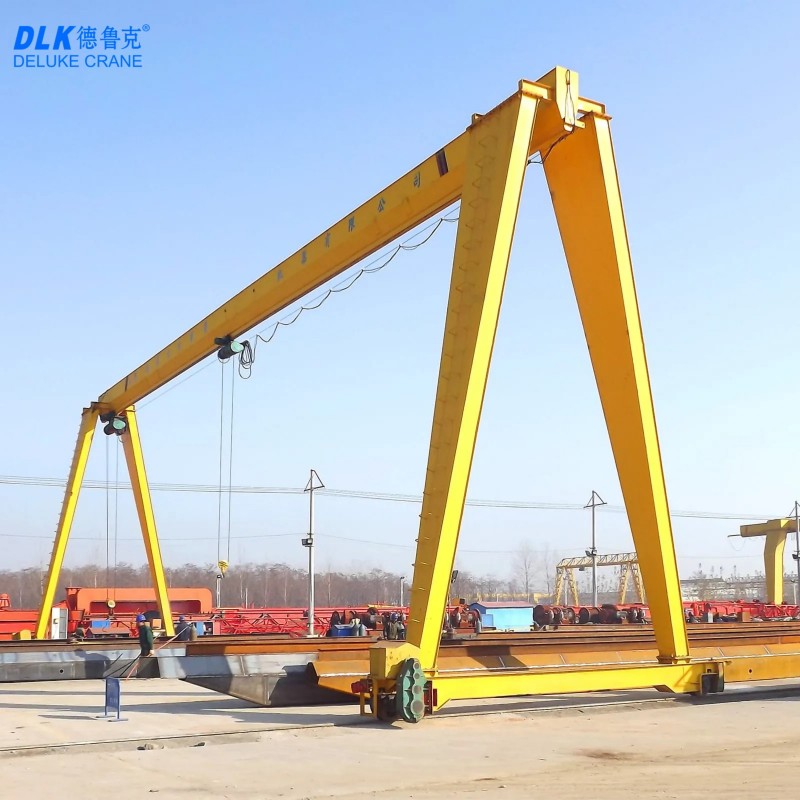

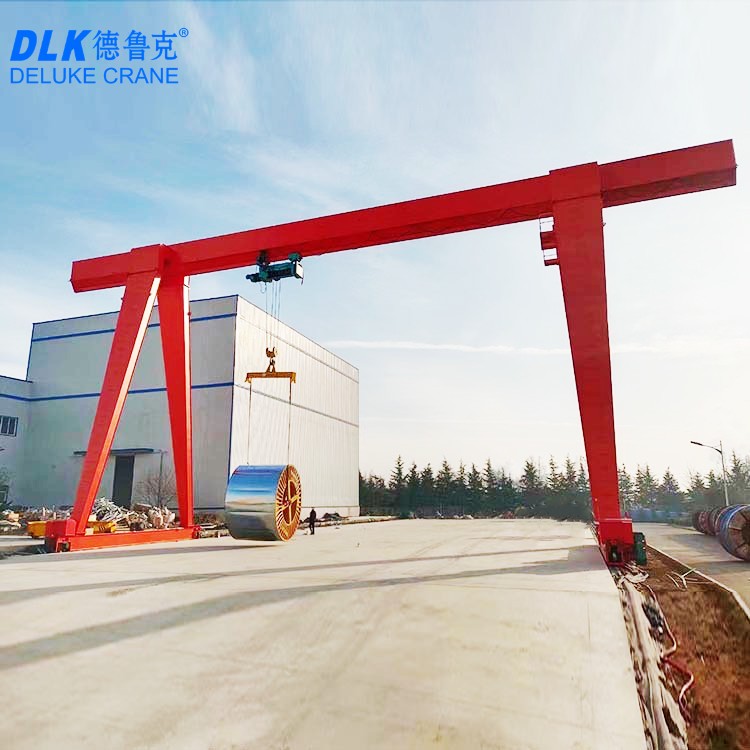

MH Single Girder Gantry Crane With Electric Hoist

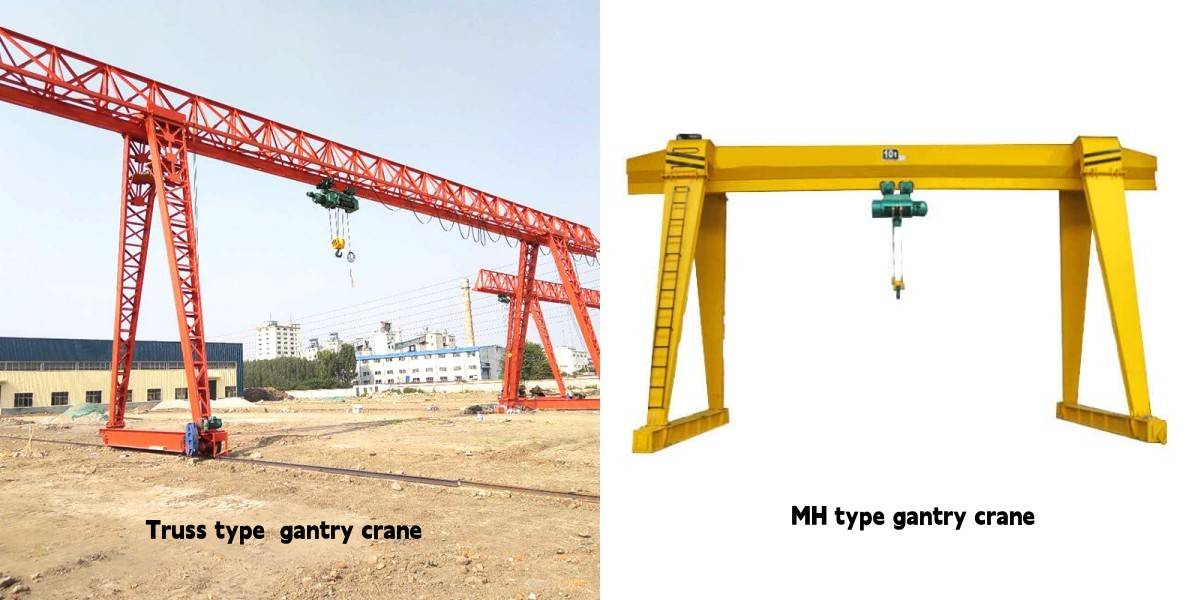

MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and non cantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs, which is very convenient and high efficiency.
MHLP type single girder gantry crane is Ltype partial hanging gantry crane, with small size and light duty, special for putting steel pipes, girders, or other long materials into the special place, widely used in steel plant, concrete girder yard
| Single Girder Gantry Crane | |||||
| Rated load/ton | 5 | 10 | 16 | 20 | 32 |
| Span/m | 10-40 | ||||
| Lifting height/m | 30 | ||||
| Working class | A3/1bM | ||||
| Lifting speed/m/min | 8 | 7 | 3.5 | 3.5 | 3 |
| Trolley running speed/m/min | 20 | 20 | 20 | 20 | 20 |
| Crane running speed/m/min | 20 | 20 | 20 | 20 | 20 |
| Dead weight/t | 10.5~37.5 | 16.8~52 | 18.9~65 | 24.5~77 | 27.5~98 |
| Number of wheel | 4 | 4 | 4 | 4 | 4/8 |
| Max. wheel pressure/KN | 52.5~12.1 | 95~183 | 131~242 | 167~298 | 238~41.5 |
| Steel track recommended | P24 | P38 | P43 | P43 | P43 |
| Power supply | 3AC 220~480V 50/60Hz | ||||
| It could be special design and customized by clients' requirements. | |||||
2. Feature：
2.Span is 12m to 30m;
3.Lifting height is 6m, 9m, 12m, etc;
4.Working duty is A5;
5.Working temperature is -20°C to + 50°C.
7.Easy to install and high efficiency.
8.Overload, low voltage protective device.
9.Pendent control and remote control.
10.Easy maintenance.

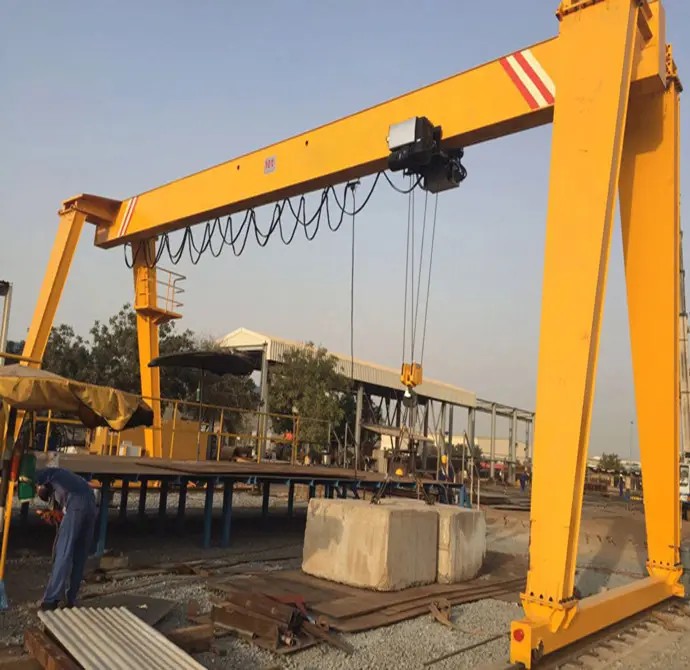

3. Single girder gantry crane application
single girder gantry crane is widely applied to do loading and unloading work in outdoor. Such as material stocks area, cement plant, granite industry, construction industry, engineering industry, and so on.

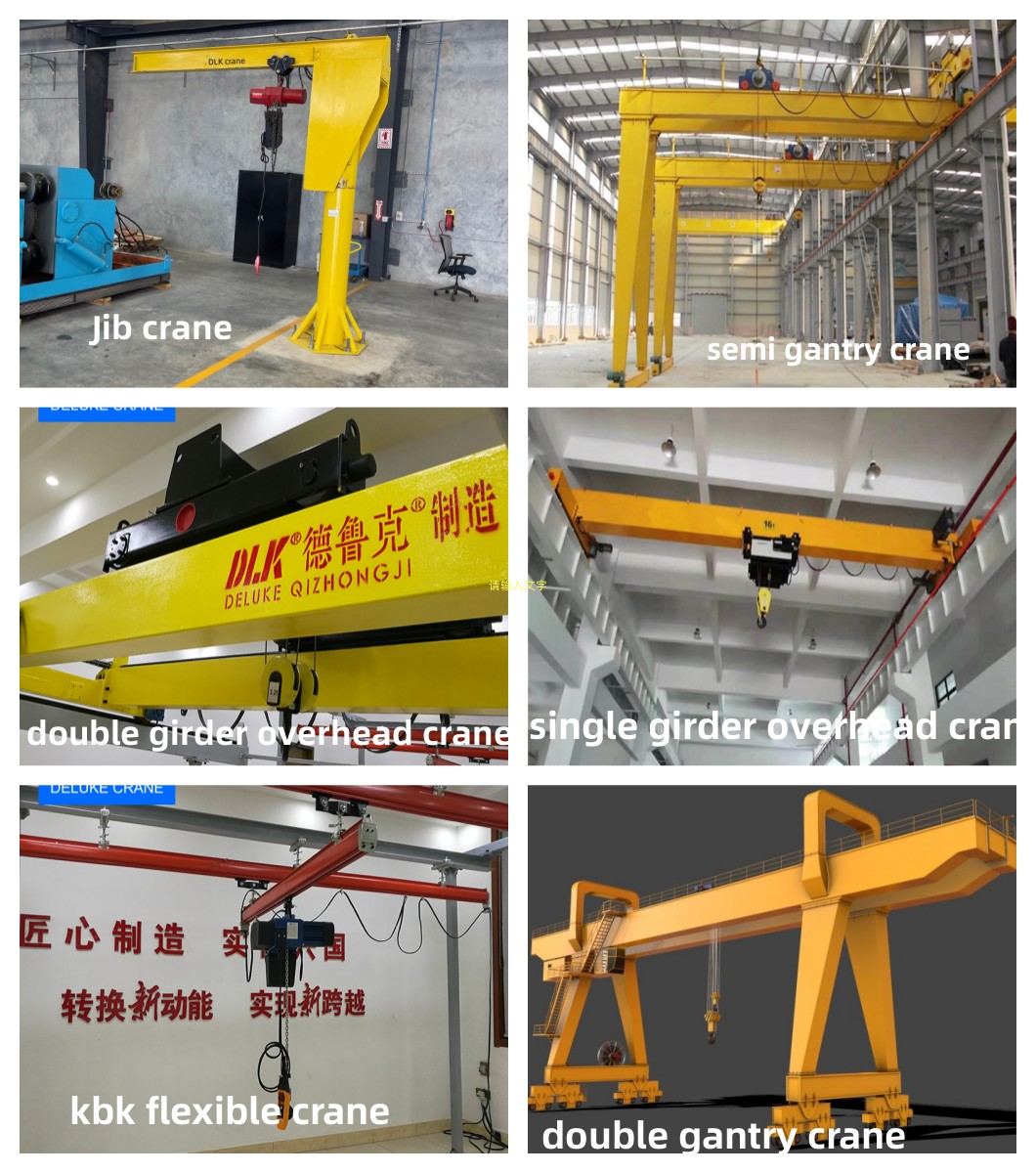

4. Related Products

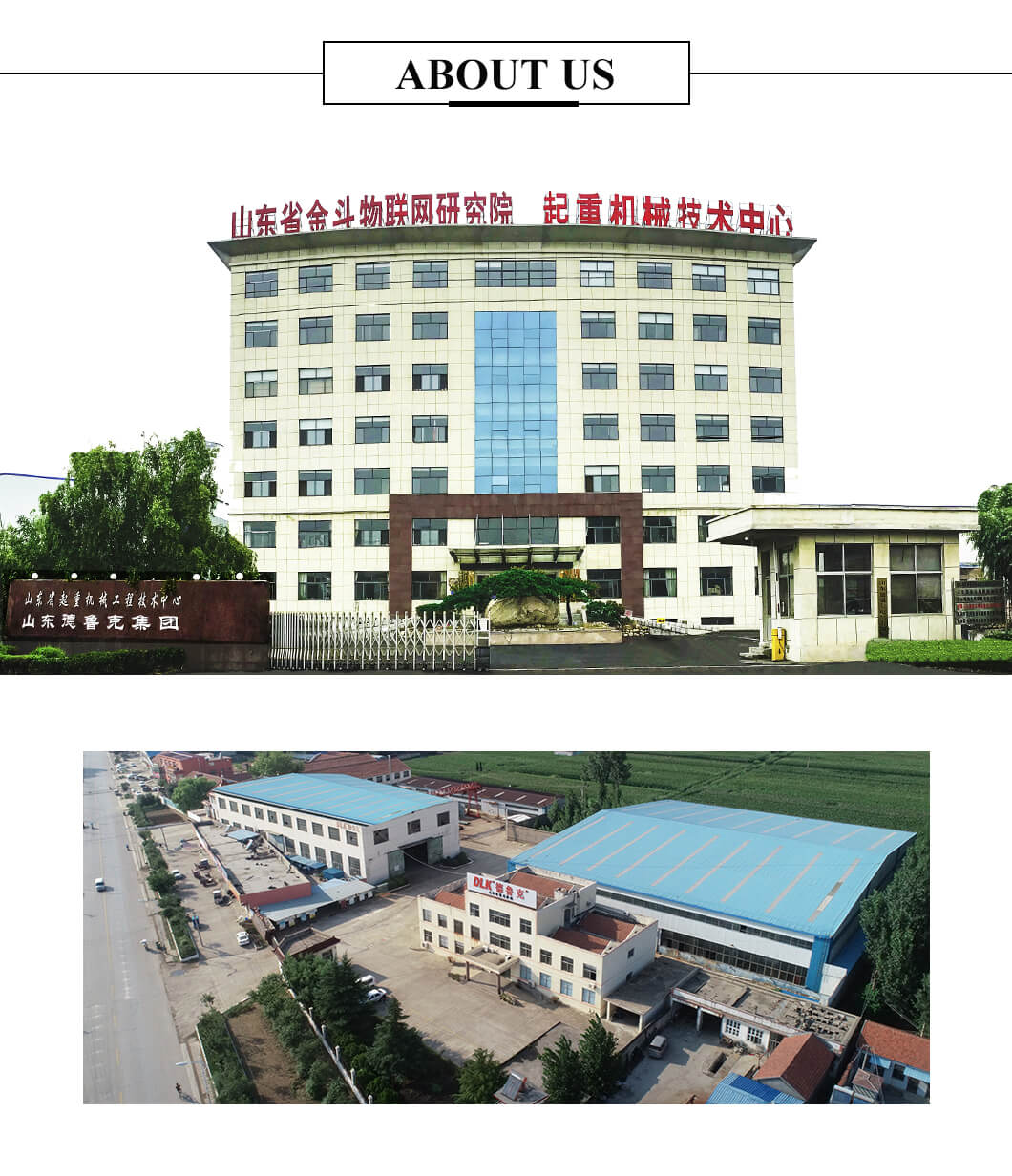

5. Company information
Shandong Deluke Crane Group Co., Ltd. was established in June 8th. 2009, located at the foot of Mount Tai, Yangliu Industrial Park, Xintai City, Shandong Province. It is an integrated enterprise integrating crane technology R&D, design, manufacture, installation, repair and maintenance. Mainly producing overhead cranes, gantry crane, Europe overhead cranes, KPK cranes, JIB cranes, intelligent crane robots, hoist, artificial intelligence products such as Crane monitoring system( "black boxes") .
DLK production technology is sourced from leading German technology, collaborates with German Demag and Finland Kone for Crane technical exchange and cooperation, adopts advanced leading European standard lifting mechanism and operation drive system as the main configurations. Now Company signed Strategic cooperation agreement with German ABUS. With the feature of environmental protection, lightweight structure, intelligent control, low failure rate, convenient operation, and easy maintenance which popular selling to more than 20 countries such as Vietnam, the United States, Indonesia, Russia, Angola and Pakistan, etc.
Looking for agents all over the world,warmly welcome friends all over the world come to visit us for deep cooperation .

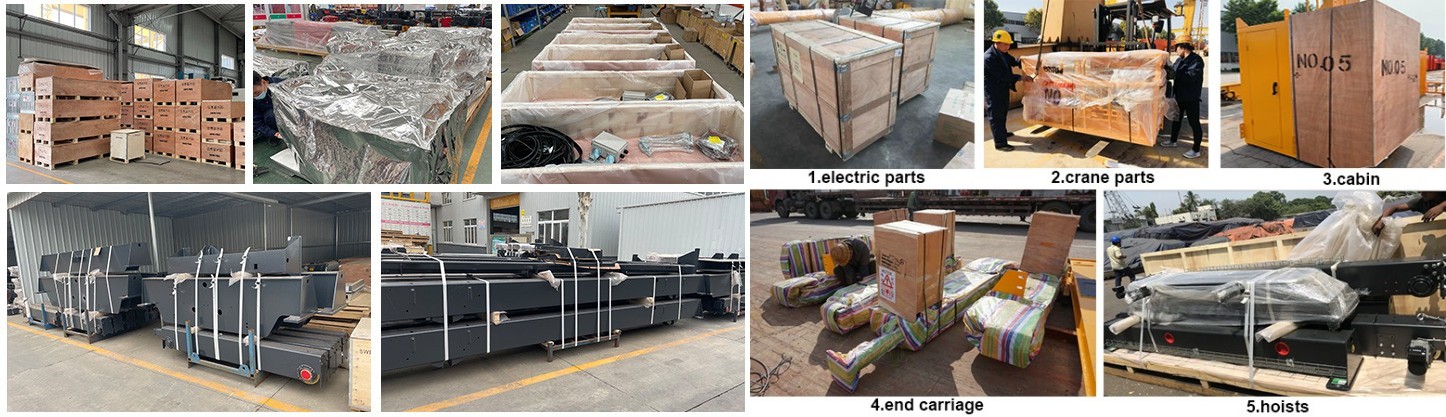

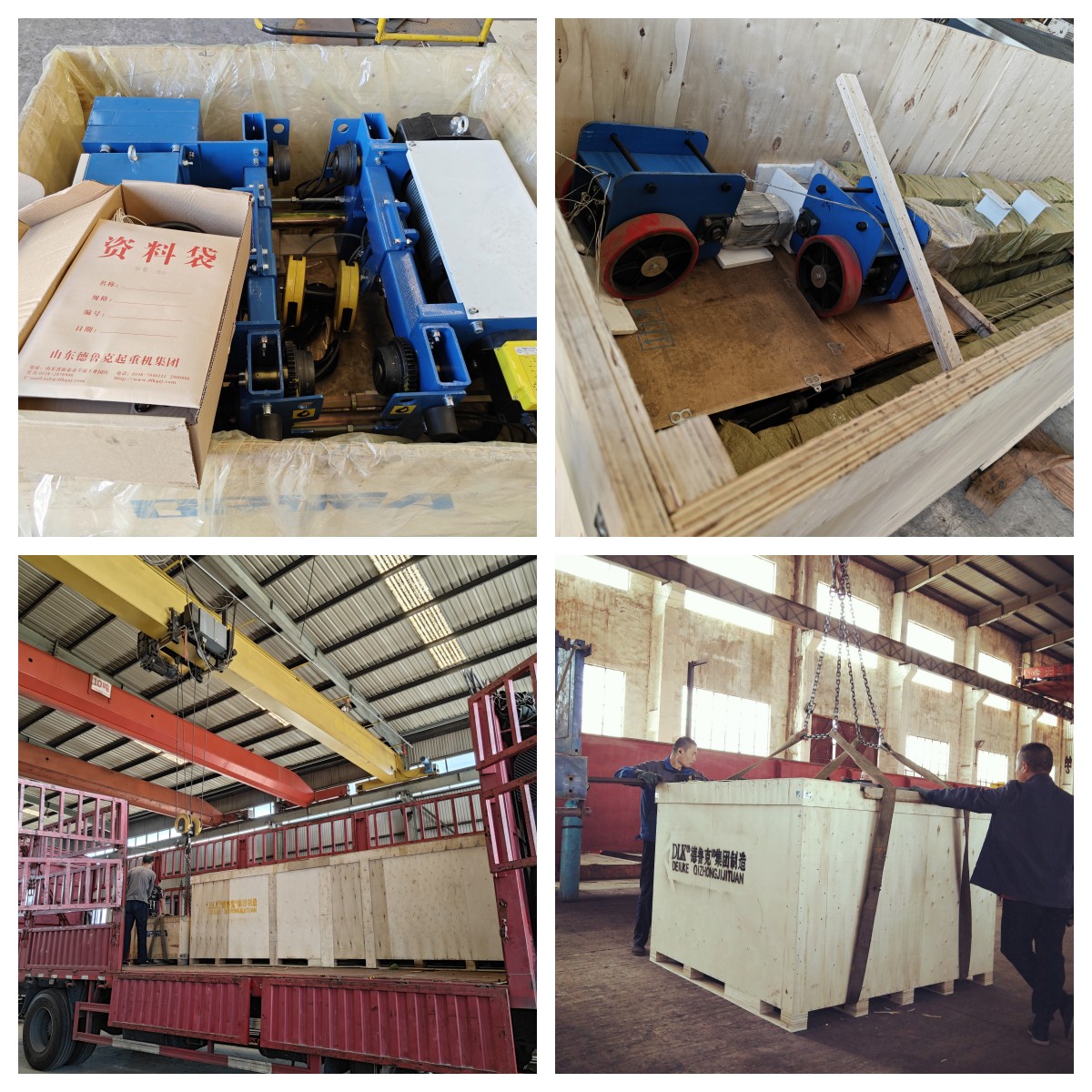

6. Package and Shippment
7. FAQ
Q1. Can the cranes be customized?
Yes, every customer's working condition is different, all of our products can be customized depend on customers' requirements. Please give us the information as clear as you can, so we can give our best design to suit for your demands.
Q2. How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type. Please tell us what kind of operation way you need.
Q3. I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
Q4. Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...
Q5: In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:
1. Lifting capacity.
2. Span length. (rail center to rail center)
3. Lifting height. (hook center to ground)
4. Have you installed the rails? Do you need us to supply the rails? How long is it? 5. Power supply: Voltage.
5. Working condition: What kind of material to lift? Temperature?
6. It would be much better if it is possible for you to offer the drawing photo of your workshop.
