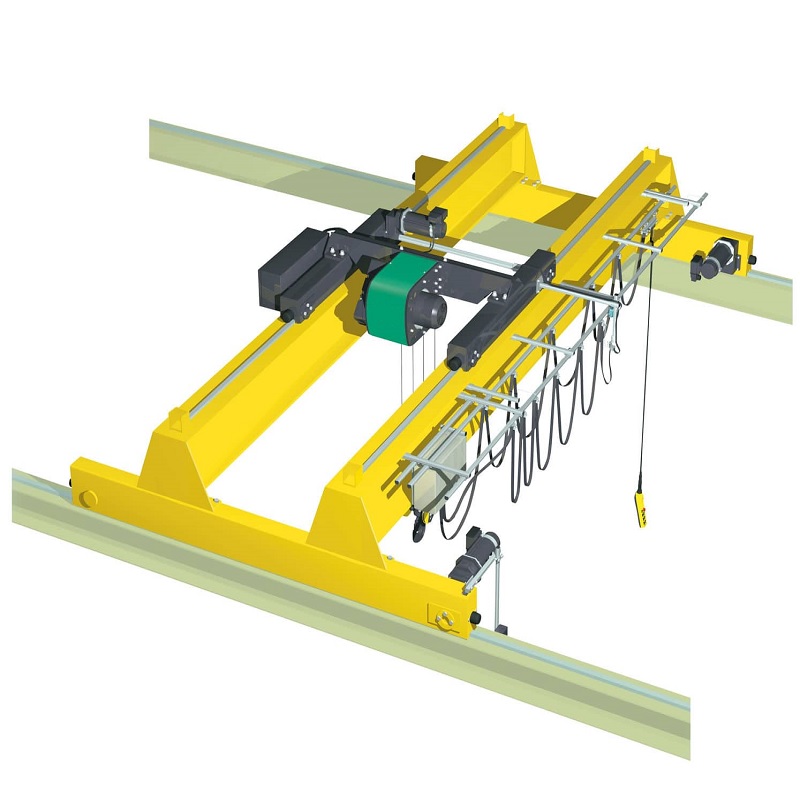

CLQ Europran standard double-girder overhead crane

The double head pocket spring coiling machine is suitable for the production of mattress and sofa pocket springs, integrating wire feeding, forming, heat treatment, compressed to pocketed. It adopts P

  • Deluke
  • CLQ European Overhead Crane
  • 10.5-31.5m
  • 0.8-5m/Min
  • -25cel to 40cel
  • Information
  • Video

The double head pocket spring coiling machine is suitable for the production of mattress and sofa pocket springs, integrating wire feeding, forming, heat treatment, compressed to pocketed. It adopts PLC program control and full touch screen operation.


TypeEuropean Double Gieder Bridge Crane

Main Girder Form

Double girder

Color

Optional

After-Sales

Service Provided

Video online

Maximum Lifting Weight

100t

Lifting Speed

0.8~5m/Min

Brand Name

Deluke

Origin

Shandong,China




PRODUCT FEATURES

European Standard Single Girder Overhead Crane is our new designed crane for the low workshop and high lifting height demands. It has many advantages such as: Strong rigidity, light dead weight, outstanding structure design, etc.The crane is mainly composed of the main girder,dirve end girder,steel rope,electric hoist and electronic control system.


It could save your factory space and investment effectively. Its technology is advanced and design is based on international standard: DIN (Germany), FEM (Europe), and ISO (International). Its particular and special travelling structure is your best choice.


Electric Single Girder Overhead Crane could be widely used to handle materials in many industries' workshop and warehouse. such as machinery manufacture. warehouse. logistic. food. paper making, electronics industries workshop and other material handling situations. The lifting hoist adopts M5 working class with double lifting speed. motor with ABM German brand motor. Travelling motor uses SEW European brand in one motor gear motors. Cross and long traveling are variable travelling speed. Electric parts adopt Siemens brand. The protection class is IP 54 high class. The working class can reach to A5/M5 class under ISO standard.

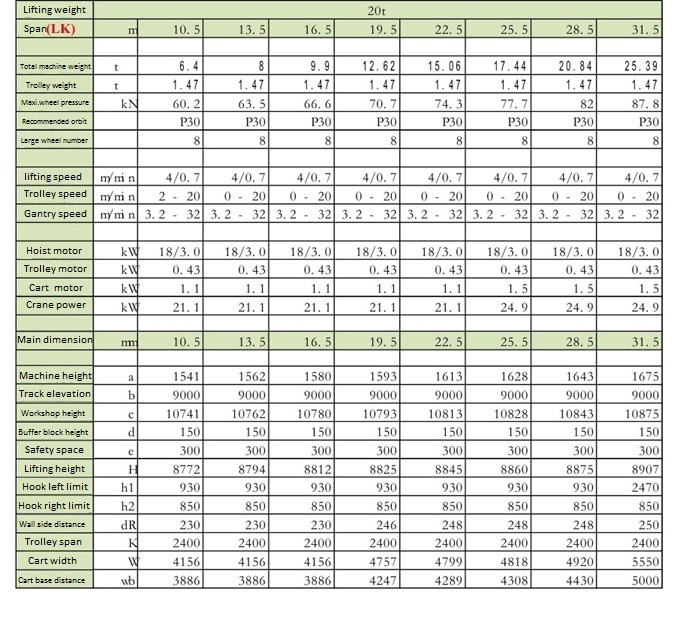

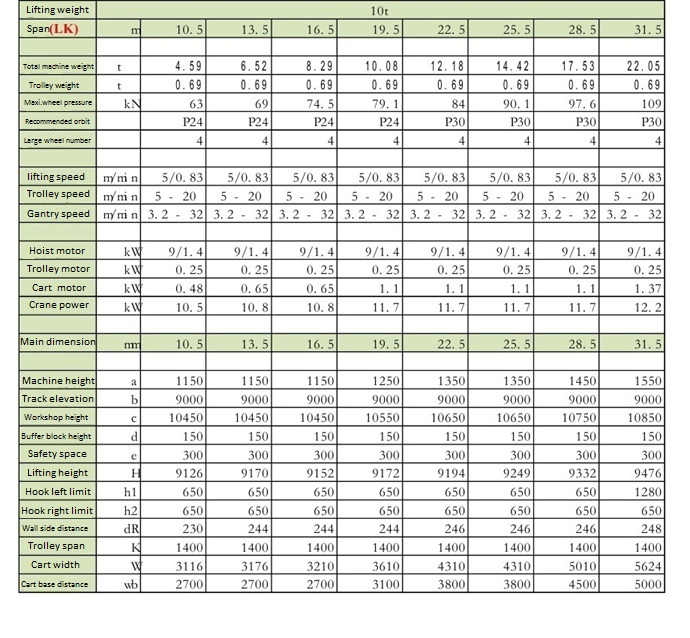

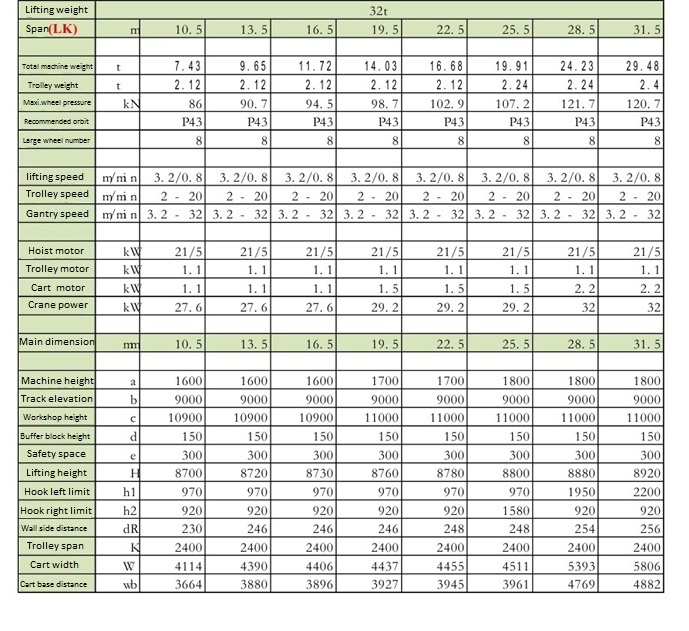

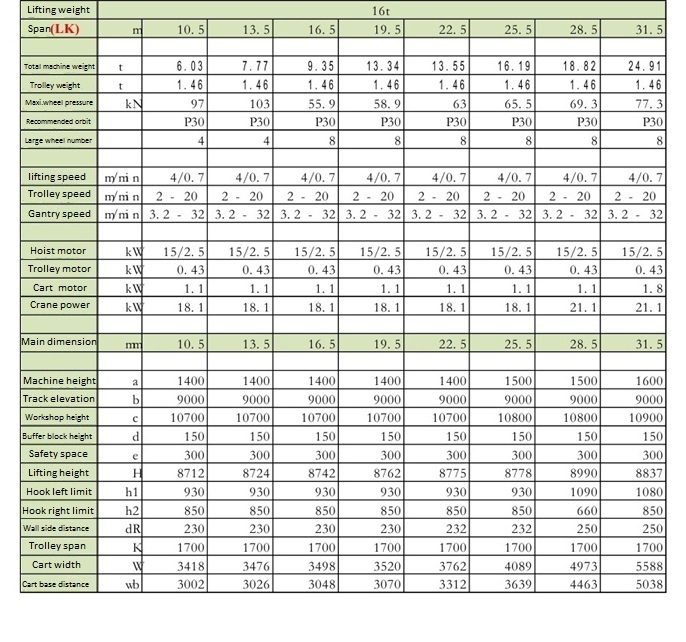

PRODUCT PARAMETERS


 1

111

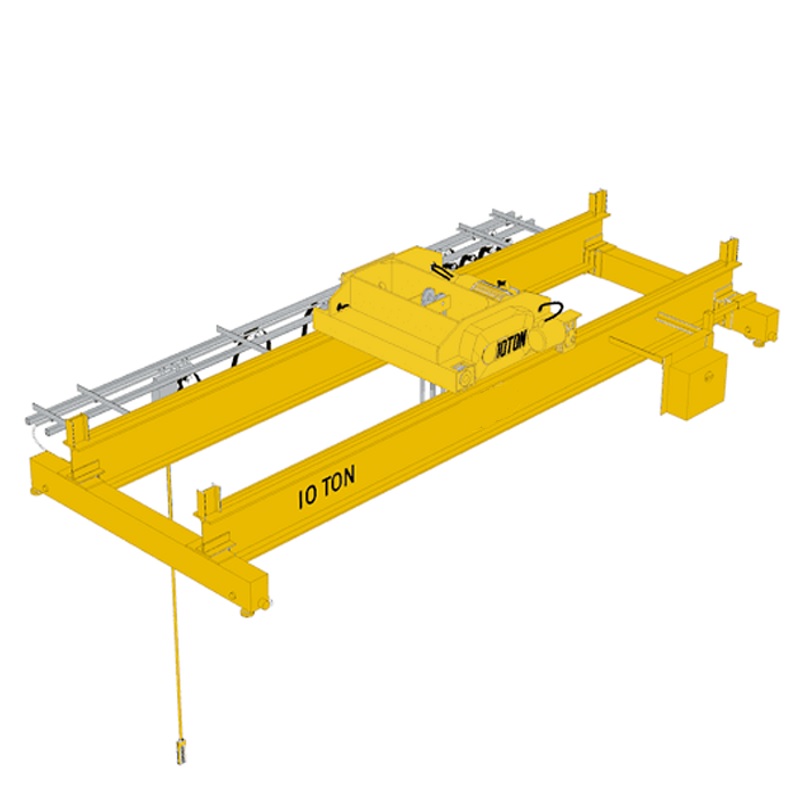

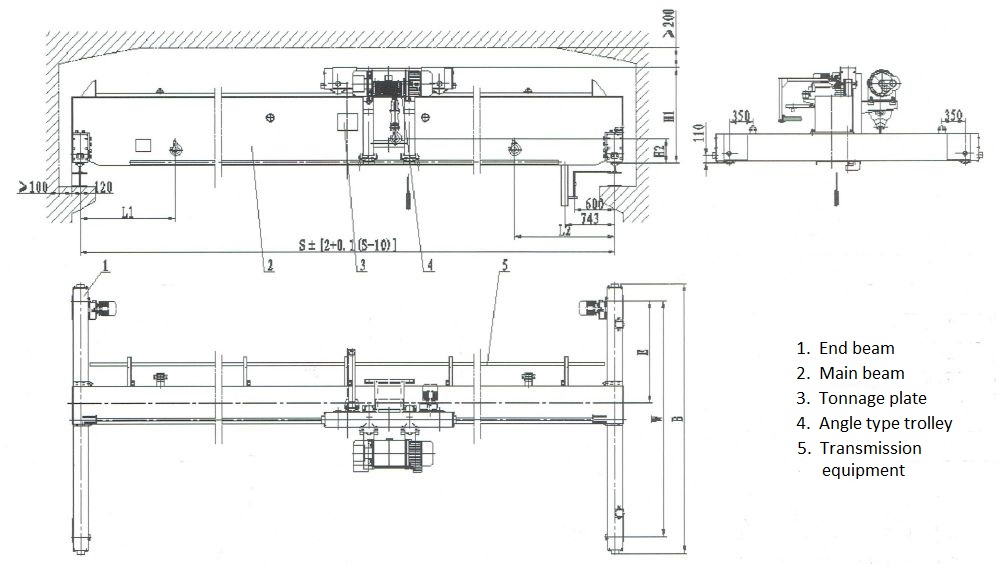

MECHANICAL STRUCTURE

77f495f651518d09c805ef08ceffb4



Double main beam optimization design, light weight, small wheel pressure, power saving.

Weight up to 150t, a variety of schemes to meet user requirements. The trolley track is made of high manganese flat steel.

Big and small car drive with three - in - one drive, hard tooth surface, disc brake. Motor IP54,F class insulation, connection duration up to 40%.

End beam integral processing, high precision, safe and stable. Electrical:

Frequency conversion speed regulation, stable operation, configuration phase protection function. Four bodies independent control, can operate alone or at the same time.

Shockproof contactor, heavy duty aviation plug socket, solid plug, insulation sleeve protection. Trolley power supply using galvanized slide cable, small block running flat cable, sliding smoothly.





CERTIFICATIONS




COMPANY PROFILE

Shandong Deluke Group was founded in 2009, located at the foot of Mount Tai - Shandong Province , is a collection of crane technology development, design, manufacturing, installation, maintenance, maintenance as one of the comprehensive enterprises, mainly producing a variety of European standard bridge crane, gantry crane and light crane,mainly products are single girder cranes(LD,FDJModels), Double Girder Cranes (LH,QD,CLQetc),gantry cranes(MH,MD,MDG..),KPK flexible beam craneJib cranes(BZ,QZ,MZ etc), variable frequency cranesExplosion-proof series cranes(LB,QB etc), Cranes with grab bucket,Low headroom monorail HoistElectric Winches, scrapers and CD1,MD1,HC,ABUS Electric HoistHand Chain Hoist etc..Shandong Province is the production of European standard crane key enterprises.

The company adopts international advanced manufacturing technology and production process, and its products are in a leading position in the same industry in China, filling the gaps in the province, and has obtained a number of national invention patents. In 2012, the company was awarded as "Shandong Star Enterprise of China Patent", and in 2016, the brand "Drucker" was awarded as "Shandong Famous Trademark". In 2018, Drucker intelligent bridge handling robot won the Shandong famous brand products. In 2018, it was awarded as the national excellent unit of equipment management by China Equipment Management Association. In 2020, it was named as the high-end brand cultivation enterprise of manufacturing industry in Shandong Province, the national high-tech enterprise, the council unit of China Heavy Machinery Industry Association and the member unit of China Equipment Management Association
